HMI operation woven tape carbon steel wire coil stretch wrapping machine 800mm Width
HMI operation woven tape carbon steel wire coil stretch wrapping machine application:
The steel wire packing machine is mainly applied to exterior wrapping. Safe and easy operation and maintenance. The packing machine can be custom designed according to different requirement. In order to have a good wrapping effect, there are various wrapping materials can be chose, such as woven belt, compound paper tape, stretch film, etc. Through the wrapping, the objects will be well protected and sealed, and be kept in a good condition.
HMI operation woven tape carbon steel wire coil stretch wrapping machine features:
1. Well-known brands adopted for the main components of the steel wire packing machine.
2. Modular design, ensure stable performance and convenient maintenance.
3. PLC program and man-machine touchscreen.Input the product outside diameter, inside diameter, width, and correction parameters, PLC will automatically calculate the length of packing tape needed.
4. Automatic loading trolley for heavy steel coil loading and offloading.
5. Independent electrical cabinet for easy operation and maintenance.
6. The overlap degree and tightness of packaging tape can be adjusted based on needs.
7. Turning ring height can be adjusted in order to adapt to the different size of the product.
8. The wrapping tape is cut automatically by program calculation.
9. The rollers are wrapped by Polyurethane to protect the steel coil surface.
HMI operation woven tape carbon steel wire coil stretch wrapping machine main parameters
| Model | GD600 | GD800 |
| Type | Trolley type | Trolley type |
| Coil width | 150mm-600mm | 400mm-800mm |
| Coil OD | 800mm-1600mm | 1000mm-1900mm |
| Coil ID | 508mm/610mm | 508mm/610mm |
| Coil weight | 300kg-6000Kg | 1000Kg-12000kg |
| Ring speed | Appr. 20-80r/min | Appr. 20-60r/min |
| Roller speed | 5-8m/min | 5-8m/min |
| Power output | 7.5KW | 10.5KW |
| Power supply | AC/380V/50Hz | AC/380V/50Hz |
| Air supply | 6-8kgf/cm2 | 6-8kgf/cm2 |
| Packing material | Compound paper/VCI paper/Knit tape: width:80-100mm; ID:55mm; OD≤500mm | Compound paper/VCI paper/Knit tape: width:80-100mm; ID:55mm; OD≤500mm |
| Stretch film: width:80-100mm; ID:50mm;OD≤150mm | Stretch film: width:80-100mm; ID:50mm;OD≤150mm |
| Synchronous wrapping system | Optional | Optional |
| Automatic manipulator | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Product Tags:
|
|

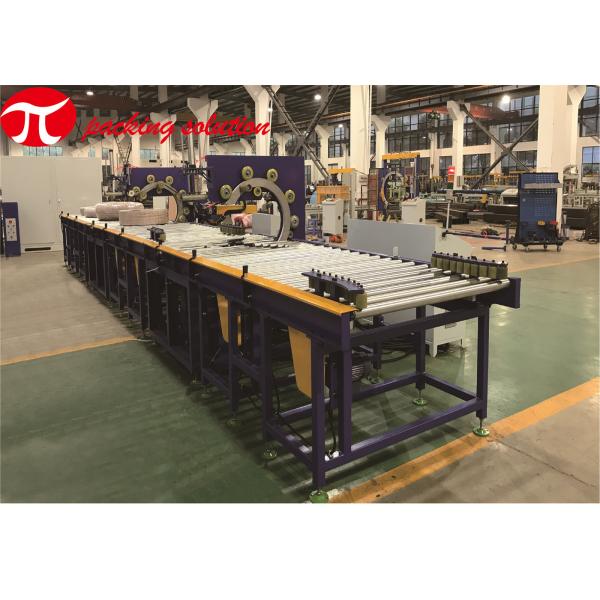

HMI Operation Woven Tape Carbon Steel Wire Coil Stretch Wrapping Machine 800mm Width Images
|
